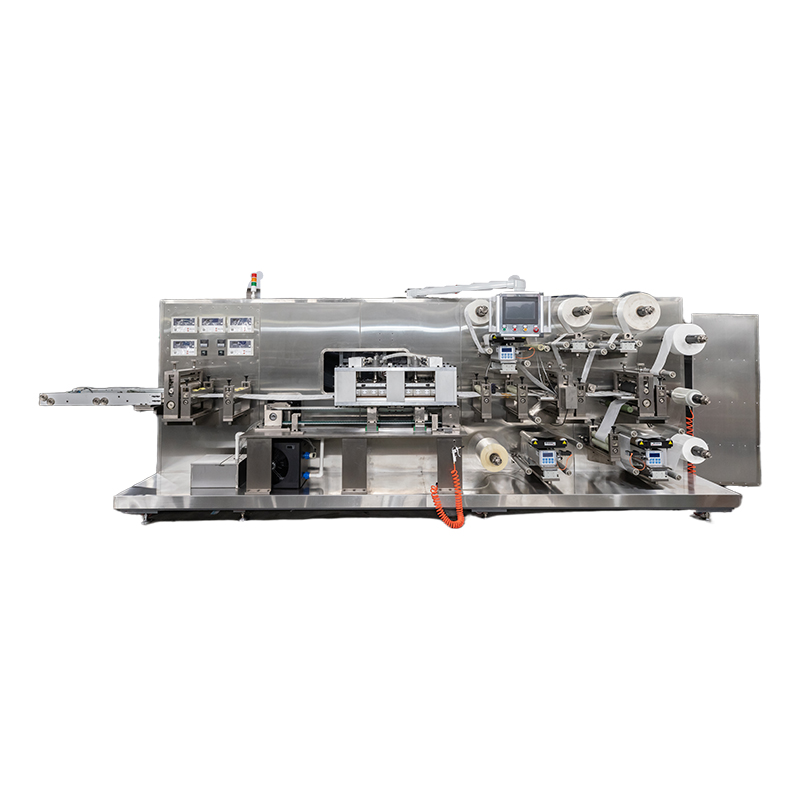

VH-300S Wound Dressing Packaging Machine

Product Series:Wound Dressing Packaging Machine

Release date:2023-05-10

Inquiry now

Main Characteristics



1.Full servo independent control manufacturing, simple touch screen operation, it is safe and reliable;

2.Unwinding adopts constant tension control for automatic unwinding, winding adopts stepper motor and magnetic powder for winding.

3.Hob cutting mode to manufacture the product by one-time molding.

4.Equipment use: suitable for dressings with Fillet exterior and cotton.

5.Scope of application: suitable for dressings with non-woven fabrics, breathable PE adhesive tape, PU adhesive tape, etc. as base material.

6.It can be made various specifications of packaging, convenient and fast mold switching, wide applicability, strong compatibility.



Main technical parameters

Model

VH-300S

Max diameter of material roll

380mm

Max width of adhesive tape

320mm

Max width of dressing

300mm

Max width of packaging

350mm

Packaging speed

0-200pieces/min

Power

15KW

Voltage

380V

Dimension

5800*1300*1900mm

Weight

3800KG
