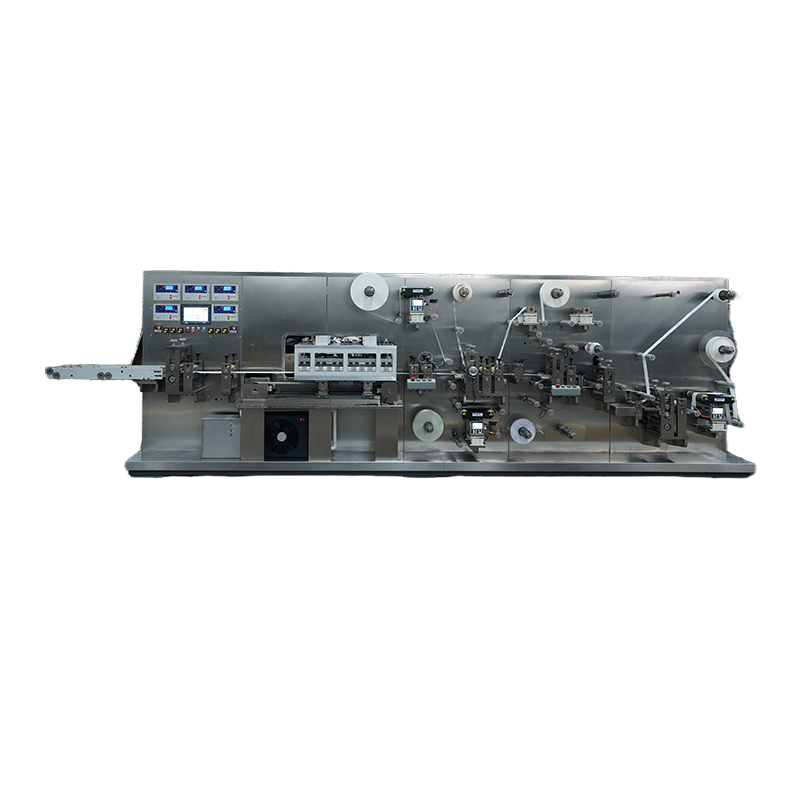

VH-250S IV Dressing Packaging Machine

Product Series:IV Dressing Packaging Machine

Release date:2023-05-10

Inquiry now

Main Characteristics



1.Full servo independent control manufacturing, simple touch screen operation, it is safe and reliable.

2.Hob cutting mode to manufacture the product by one-time molding.

3.Unwinding adopts constant tension control for automatic unwinding, winding adopts stepper motor and magnetic powder for winding.

4.Reciprocating heat-sealing mechanism, with sufficient time for large-area sealing, strong sealing, smooth, firm and beautiful sealing; And meet a variety of materials sealed packaging.

5.Die cutting fenestration waste automatic elimination.

6.Equipment use: suitable for production of PU fenestration bandage (indwelling needle dressing) products.

7.Scope of application: suitable for dressings with non-woven fabrics, breathable PE adhesive tape, PU adhesive tape, etc. as base materials.



Main technical parameters

Model

VH-250S

Max diameter of material roll

400mm

Max width of adhesive tape

270mm

Max width of indwelling needle dressing

250mm

Max width of packaging

3000mm

Packaging speed

0-200pieces/min

Power

15KW

Voltage

380V

Dimension

5600*1250*1900mm

Weight

3500KG
